Using hx-preserve To Persist Elements Across Swaps In HTMX
With HTMX, you can use the hx-boost attribute to AJAX'ify navigation in your ColdFusion applications. Boosting pages increases the complexity of the application and can lead to some strange JavaScript behaviors. But, this trade-off in complexity ushers in the ability to maintain some state across pages. And one way to maintain state in HTMX is with the hx-preserve attribute.
Note: While I'm talking about state preservation in the context of a boosted app, the
hx-preserveattribute applies to all swap operations, not just those managed by thehx-boostform and link interception.
When HTMX swaps content into a target element within the rendered Document Object Model (DOM), it follows these steps (among many others):
Search the target element for any children that have the
hx-preserveattribute.Move these preserved elements into a temporary quarantine container (internally referred to as the "pantry" - which is an adorable name).
Prepend the new AJAX-delivered content into the target element.
Remove (and de-init) all of the old content from the target element.
Iterate over all of the preserved elements that have been quarantined in the pantry; and, for each of them, replace them into the newly-injected content by matching against the quarantined element's
idattribute.
To explore the hx-preserve mechanics, I've created a two page ColdFusion application in which each page has a button for creating new toast notifications; and, a fixed-position area into which the toasts will be rendered. The toast rendering container will use the hx-preserve attribute so that it will be maintained as we navigate between the hx-boost'ed pages.
Here's page one:
<cfoutput>
<h1>
Page One
</h1>
<button hx-post="toast.cfm?from=one">
Make Toast (One)
</button>
<aside id="toaster" hx-preserve>
<!--- Toasts to preserve across AJAX swaps. --->
</aside>
</cfoutput>
And, here's page two. It's essentially identical; but, passes a different from query-string parameter in the hx-post URL:
<cfoutput>
<h1>
Page Two
</h1>
<button hx-post="toast.cfm?from=two">
Make Toast (Two)
</button>
<aside id="toaster" hx-preserve>
<!--- Toasts to preserve across AJAX swaps. --->
</aside>
</cfoutput>
As you can see, both of these ColdFusion pages include an <aside> element with the same id="toaster" attribute. The hx-preserve attribute matches elements based on id, so this consistency across pages is necessary. I would normally put this element into a layout template; but, I was trying to keep this demo as simple as possible.
Both of the pages have a button that posts to toast.cfm. This ColdFusion API end-point does nothing but disable the normal swap behavior via the HX-Reswap HTTP header; and return a single out-of-band (OOB) swap directive:
<cfscript>
param name="url.from" type="string" default="unknown";
// Tell HTMX that we don't want to perform any default swap - all swaps in this
// request will be processed as explicit out-of-band swaps.
header
name = "HX-Reswap"
value = "none"
;
</cfscript>
<cfoutput>
<!--- Take the innerHTML of this element and append it to the toaster. --->
<div hx-swap-oob="beforeend:##toaster">
<div data-from="#encodeForHtmlAttribute( url.from )#">
From #encodeForHtml( url.from )# [#createUniqueID( "counter" )#]
-
<button
hx-get="null.cfm"
hx-trigger="click, load delay:5s"
hx-target="closest div"
hx-sync="this:drop">
X
</button>
</div>
</div>
</cfoutput>
The beforeend:#toaster OOB value tells HTMX to append the new div (toast notification) to the hx-preserveed toaster container on the client. And, the load delay:5s trigger on the button tells HTMX to automatically remove the toast notification after 5 seconds.

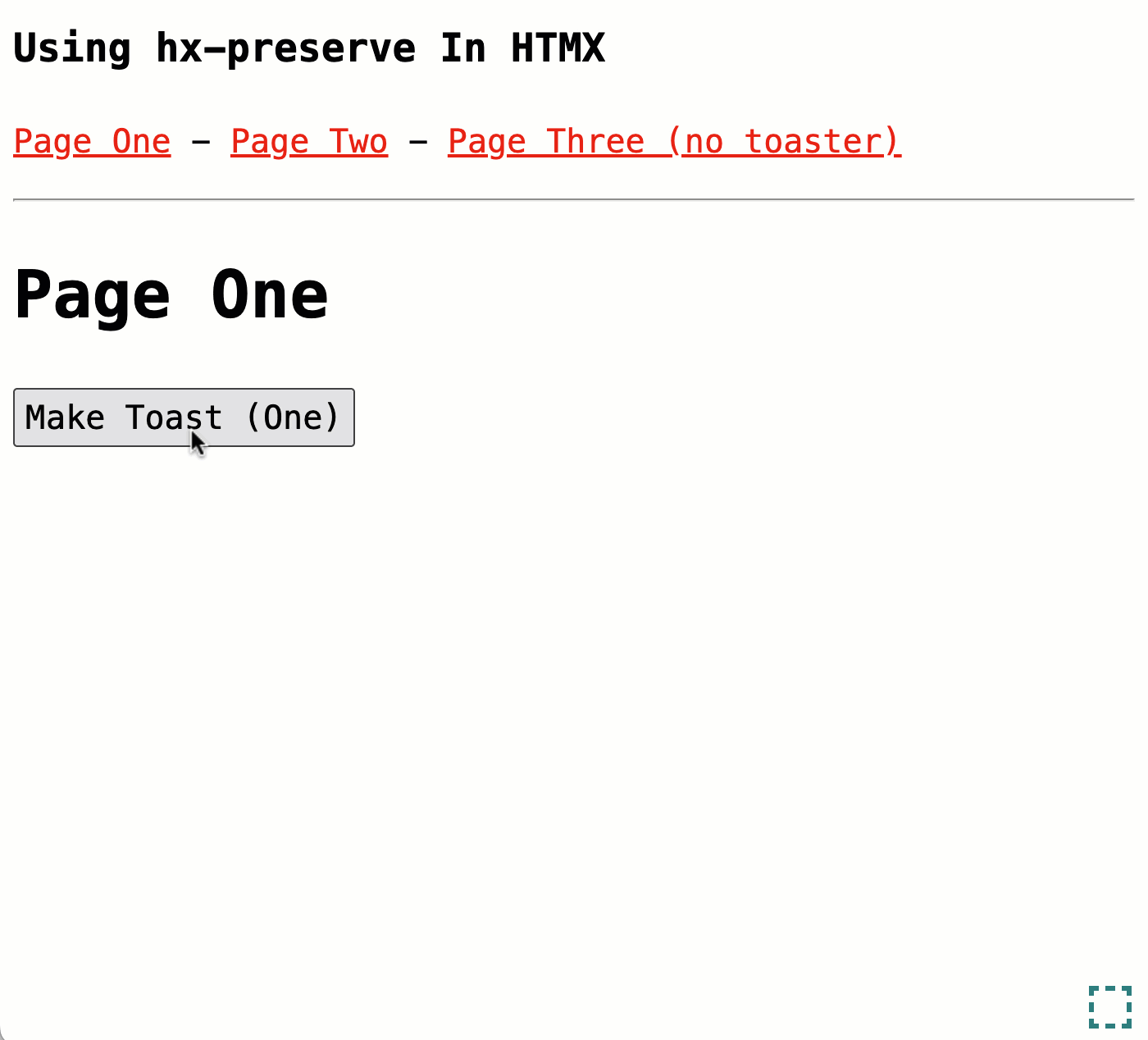

If we run this ColdFusion application, trigger some toast notifications, and navigate between the two hx-boost'ed pages, we can see that the state of the toast container is preserved:
Since this is a boosted application, the entire content of the <body> is being swapped as I navigate between page One and page Two. However, as part of the swapping process, HTMX is preserving the toaster contents; which is why the toast notifications aren't being cleared the way they might in a traditional multi-page application (MPA).
Aside: I'm not demonstrating it in this post, but in the GIF above you might have noticed that there's a third page with no toaster container. If I were to navigate to this third page, the existing toasts would immediately disappear—there's no corresponding
hx-preserveidto swap-in. But, if I were to then click the Back button, HTMX would re-render the cached version of the toast notifications; and, it would reset theload delay:5stimer on each of re-rendered toasts.
One final thing to call-out. Each toast notification has a button to remove the corresponding notification. This button performs an hx-get to null.cfm. This is a curious tip that I picked up in an article that I read (though unfortunately I can't find the reference). The null.cfm page does nothing but get cached and perform a delete swap:
<cfheader
name="HX-Reswap"
value="delete"
/>
<cfheader
name="Cache-Control"
value="max-age=604800"
/>
This is a utility end-point that gives HTMX (and you) a round-about way to remove an element without adding any additional JavaScript or event bindings. Basically, you call this end-point and any element that you hx-target will be removed from the DOM.
I could have also used the htmx.remove() method to remove the notification—it takes a delay argument. The following two notification setups would be roughly the same (for all intents and purposes):
<!--- Our original, with 'null.cfm' mechanics. --->
<div data-from="#encodeForHtmlAttribute( url.from )#">
From #encodeForHtml( url.from )# [#createUniqueID( "counter" )#]
-
<button
hx-get="null.cfm"
hx-trigger="click, load delay:5s"
hx-target="closest div"
hx-sync="this:drop">
X
</button>
</div>
<!--- Using the htmx.remove() call with more logic. --->
<div
hx-on:htmx:load="htmx.remove( this, 5000 )"
data-from="#encodeForHtmlAttribute( url.from )#">
From #encodeForHtml( url.from )# [#createUniqueID( "counter" )#]
-
<button hx-on:click="htmx.remove( this.parentElement );">
X
</button>
</div>
The latter doesn't require a (subsequently cached) HTTP request to trigger the removal; but, it does require more imperative logic. I think both ways are worth considering.
In any case, the hx-preserve attribute looks like it will be a great tool to have in the toolbox.
Preserving Audio/Video Players
The hx-preserve attribute doesn't work perfectly with all types of HTML elements. For example, video and audio players have been a point of friction for things like this in the past (a few years ago, I explored a persisted video play in Hotwire Turbo). The HTMX framework attempts to use a modern API for moving elements without losing state, Element.moveBefore(), if it's available; but, in context in which that can't be used, the documentation suggests either using hx-history-elt to change the page-swap boost root; or, use the morph-dom extension.
To be clear, I've never tried either of those approaches (in HTMX) - this is just what I've read.
