Extending The Application.cfc ColdFusion Framework Component With A Relative Path

By Ben Nadel on
Tags: ColdFusion

The ColdFusion application framework is a truly beautiful thing. It's high level of flexibility affords an unbelievable amount of power and control to the developer in regard to all aspects of the request processing. Its Achilles heel, however, has always been the fact that extending the Application.cfc component is a nightmare. As such, people are less likely to leverage the ability to sub-class parts of an application.

I like to think that I have a pretty strong grasp on how the ColdFusion application framework operates. But even after all these years, I am still finding some new features. A couple of months ago, I discovered that you could CFInclude one ColdFusion Application component (CFC) into another. I tried to use this behavior in order to extend Application.cfc but, the implementation was fairly junky.

Then, yesterday, as I was talking to someone about this problem (of relative paths), I had a eureka moment! What if I could use a ColdFusion custom tag to define my ColdFusion Application component? A custom tag, executed within a ColdFusion component, would have the unique ability to maintain its own memory space and, at the same time, have implicit access to the parent component's local scopes.

As it turns out, by combining the relative-path abilities of CFInclude with the encapsulation of a ColdFusion custom tag, we can define and thereby extend our ColdFusion application framework components using relative paths.

To see what I'm talking about, let's take a look at a simple application with the following directory structure:

./
./Application.cfc
./index.cfm
./sub/Application.cfc
./sub/Application.cfm
./sub/index.cfm

As you can see, we have two Application.cfc components and two index.cfm files (for each level of the application). We also have an Application.CFM file, which we will be using as a custom tag - but, we'll get to that in a little bit.

Let's look at the root Application.cfc ColdFusion application framework definition:

Application.cfc (In The Root)

  • <cfcomponent
  • output="false"
  • hint="I define the application settings and event handlers.">
  •
  • <!--- Define the application settings. --->
  •
  • <!---
  • When defining the name here, I typically use a hash() of
  • the current template path; however, since we are using this
  • in different directories, we need to make the name static
  • (otherwise each directory will get its own application
  • instance).
  • --->
  • <cfset this.name = "AppExtendViaCustomTag" />
  • <cfset this.applicationTimeout = createTimeSpan( 0, 0, 10, 0 ) />
  •
  • <!---
  • The base app will not have any session management. Session
  • management will be turned on in the sub-application.
  • --->
  • <cfset this.sessionManagement = false />
  •
  •
  • <cffunction
  • name="onApplicationStart"
  • access="public"
  • returntype="boolean"
  • output="false"
  • hint="I initialize the application.">
  •
  • <!--- Set some app variables for testing. --->
  • <cfset application.dateInitialized = now() />
  •
  • <!--- Return true so the page can process. --->
  • <cfreturn true />
  • </cffunction>
  •
  •
  • <cffunction
  • name="onRequestStart"
  • access="public"
  • returntype="boolean"
  • output="false"
  • hint="I initialize the request.">
  •
  • <!--- Set some request variables for testing. --->
  • <cfset request.dateInitialized = now() />
  •
  • <!--- Return true so the page can process. --->
  • <cfreturn true />
  • </cffunction>
  •
  •
  • <cffunction
  • name="onRequest"
  • access="public"
  • returntype="void"
  • output="true"
  • hint="I process the user's request.">
  •
  • <!--- Define arguments. --->
  • <cfargument
  • name="script"
  • type="string"
  • required="true"
  • hint="I am the request script."
  • />
  •
  • --- START SCRIPT REQUEST ---<br />
  • <br />
  •
  • <!--- Include (execute) requested script. --->
  • <cfinclude template="#arguments.script#" />
  •
  • <br />
  • --- END SCRIPT REQUEST ---<br />
  •
  • <!--- Return out. --->
  • <cfreturn />
  • </cffunction>
  •
  • </cfcomponent>

As you can see, the root Application.cfc defines a few event handlers and explicitly turns off session management. Take special note of the onRequest() event handler as this defines output that will be used by both the root and sub-directory aspects of our ColdFusion application.

Now, let's take a look at the index.cfm file in the root:

Index.cfm (In The Root)

  • <!--- NOTE: This is the ROOT index. --->
  •
  • <cfdump
  • var="#application#"
  • label="Root Application"
  • />
  •
  • <br />
  •
  • <cfdump
  • var="#request#"
  • label="Root Request"
  • />
  •
  • <br />
  •
  • <cfdump
  • var="#session#"
  • label="Root Session"
  • />

When we make a request to the root index.cfm file, we get the following page output:







Extending Application.cfc With A Relative Path - Root Version.




As you can see, the page processed exactly as we expected it to.

Ok, now let's get into the fun stuff. Let's take a look at the Application.cfc within our SUB directory:

Application.cfc (In The Sub Directory)

  • <!--- NOTE: This is the SUB Application.cfc file. --->
  •
  • <!---
  • Define the Application.cfc. Notice that we are using the
  • Application.CFM as a custom tag to allow us to extend the root
  • Application.cfc files with a relative path.... that's right - a
  • relative path!
  • --->
  • <cf_application
  • extends="../Application.cfc"
  • hint="I define the application settings and event handlers.">
  •
  •
  • <!---
  • Override any application-level settings. In this case, we
  • are going to turn on session management.
  • --->
  • <cfset this.sessionManagement = true />
  • <cfset this.sessionTimeout = createTimeSpan( 0, 0, 1, 0 ) />
  •
  •
  • <cffunction
  • name="onSessionStart"
  • access="public"
  • returntype="void"
  • output="false"
  • hint="I initialize the session.">
  •
  • <!--- Set some session variables for testing. --->
  • <cfset session.dateInitialized = now() />
  •
  • <!--- Return out. --->
  • <cfreturn />
  • </cffunction>
  •
  •
  • <cffunction
  • name="onRequestStart"
  • access="public"
  • returntype="boolean"
  • output="false"
  • hint="I initialize the SUB request.">
  •
  • <!--- Invoke the super onRequestStart() method. --->
  • <cfset super.onRequestStart( arguments[ 1 ] ) />
  •
  • <!--- Set a request variable for testing. --->
  • <cfset request.isSubApplication = true />
  •
  • <!--- Return true so the page can process. --->
  • <cfreturn true />
  • </cffunction>
  •
  •
  • </cf_application>

As first glance, this might appear to be completely mundane - we have our ColdFusion component, it extends our root Application.cfc, it defines some application settings, and it defines some event handlers.

But wait, we're using a relative path to define our parent Application.cfc. And hold on professor - where's our CFComponent tag? What the heck is going on around here?!?

Now things are starting to get sexy; rather than using a traditional CFComponent tag to define our component body, we're using the lower-precedence Application.cfm file as a ColdFusion custom tag in order to define our Application.cfc ColdFusion application component.

Before we look at the underlying magic, let's first make sure that everything else is in order. If you look at this sub-Application.cfc, you'll see that it overrides some of the application settings, turning on session management. You'll also see that it is overriding the root onRequestStart() event handler by both calling the "super" event handler and then subsequently adding its own request property (isSubApplication). Of particular interest, however, notice that we are extending the sub-Application.cfc with a relative path to the base Application.cfc instance.

The sub directory of our application also has an index.cfm file which is pretty much a mirror of the root index.cfm.

Index.cfm (In The Sub Directory)

  • <!--- NOTE: This is the SUB index. --->
  •
  • <cfdump
  • var="#application#"
  • label="Sub Application"
  • />
  •
  • <br />
  •
  • <cfdump
  • var="#request#"
  • label="Sub Request"
  • />
  •
  • <br />
  •
  • <cfdump
  • var="#session#"
  • label="Sub Session"
  • />

As you can see, this is simply CFDump'ing the same scopes as the other version. When make a request to this sub-directory index.cfm file, we get the following output (which I have marked up for convenience):







Extending Application.cfc With A Relative Path - Sub-Application.cfc Version.




As you can see, a request to the sub directory of our application was able to bring in aspects of the root Application.cfc as well as the overriding aspects of our sub-application. When I saw this work for the first time, I was once again overcome with a sense of awe and amazement regarding the flexibility and power of the ColdFusion application framework.

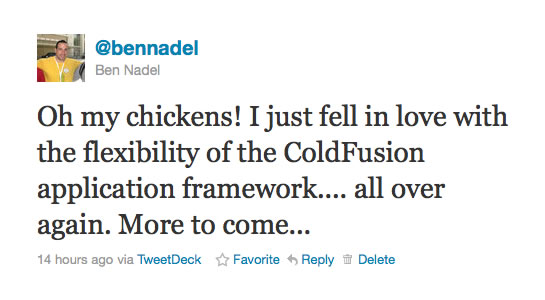

Extending Application.cfc With A Relative Path - Twitter Love!




Now, going back to the novel way in which we are defining our ColdFusion component, let's take a look at what that ColdFusion custom tag is actually doing. Before we look at the code, though, I just wanted to mention that I used the Application.CFM file as a convenience; there's nothing that requires that particular file for this to work. I just thought it was nice to keep all the "application" stuff in a related set of files. And, since the Application.cfc file always takes precedence over the Application.cfm file, I knew there would never be any unexpected invocation.

Application.cfm (Our "CFComponent" Custom Tag)

  • <!--- Check to see which mode we are executing. --->
  • <cfif (thisTag.executionMode eq "start")>
  •
  •
  • <!--- Param the tag attributes. --->
  •
  • <!---
  • I am the relative path of the Application.cfc that we are
  • going to extend. Since Application.CFC and Application.CFM
  • exist at the same level, we can use a relative path.
  • --->
  • <cfparam
  • name="attributes.extends"
  • type="string"
  • />
  •
  •
  • <!--- Include the given root Application.cfc. --->
  • <cfinclude template="#attributes.extends#" />
  •
  •
  • <!---
  • Build up a copy of the root Application.cfc. Now that we've
  • included the root Application.cfc, we now have all of the
  • THIS-based variables in the custom tag Variables scope.
  • --->
  • <cfset thisTag.super = {} />
  •
  •
  • <!---
  • Loop over the variables scope to copy all the root-level
  • variables to the super collection.
  • --->
  • <cfloop
  • item="key"
  • collection="#variables#">
  •
  • <!---
  • Make sure that this is not an ordinary custom tag variable.
  • --->
  • <cfif !listFindNoCase( "attributes,caller,thisTag", key )>
  •
  • <!--- Copy the framework property. --->
  • <cfset thisTag.super[ key ] = variables[ key ] />
  •
  • </cfif>
  •
  • </cfloop>
  •
  •
  • <!--- Copy the super object to the caller scope. --->
  • <cfset caller.super = thisTag.super />
  •
  • <!---
  • Copy over the THIS scope base properties into the caller
  • scope immediately. These can be easily overriden within the
  • body of the custom tag.
  •
  • NOTE: We can't simply assigne the THIS scope. That will
  • corrupt it; rather, we have to leave the caller THIS in tact
  • and just add to it.
  • --->
  • <cfset structAppend( caller.this, thisTag.super.this ) />
  •
  • <!---
  • Now that we have copied the THIS scope, delete it from
  • super. This way, we can copy append the Variable scope
  • without messing up the super values.
  • --->
  • <cfset structDelete( thisTag.super, "this" ) />
  •
  • <!---
  • Now that we have santized our super collection (to remove
  • THIS scope), we can now append the local variables
  • collection to the caller variables collection.
  •
  • NOTE: This will not cause existing function name errors
  • if we override the the root methods with the sub-methods.
  • --->
  • <cfset structAppend( caller.variables, thisTag.super ) />
  •
  •
  • <!--- ----------------------------------------------------- --->
  • <!--- ----------------------------------------------------- --->
  • <cfelse>
  • <!--- ----------------------------------------------------- --->
  • <!--- ----------------------------------------------------- --->
  •
  •
  • <!--- Nothing to do here that I can think of. --->
  •
  •
  • </cfif>

The fact that this even works sort of blows my mind! Like I said, I am once again in awe of the ColdFusion application framework. Inside of this custom tag, we are including the root Application.cfc. And, since we are using CFInclude to do this, using a relative path to define the root Application.cfc is no longer a problem.

Once included, all of the root Application.cfc's variables come to exist in the encapsulated memory space of the custom tag. It then becomes a simple matter of copying them from the custom tag into the CALLER scope - our sub-Application.cfc instance. And, since this include-n-copy takes place in the "start" mode of our custom tag, it allows the sub-Application.cfc to easily override any of the root-Application.cfc settings (including event handlers).

At first, I was concerned that using a ColdFusion custom tag to define the component would create CFFlush-issues since you can't flush the output buffer within the execution of a custom tag. But then I remembered, we're not actually executing our event handlers in the context of the custom tag - we're simply defining them. Once our sub-Application.cfc gets instantiated, the custom tag has finished executed and the event handlers can be invoked without limitation.

Of course, none of this would be an issue if we could just use relative paths to define ColdFusion component locations; but, until that is possible, I think this creates a fairly clean solution. And, it provides a very easy upgrade path - should we suddenly be able to use relative pathing, all you would have to do is replace the cf_application tag with a CFComponent tag and all is good.

NOTE: In full disclosure, I should mention that this doesn't quite work if you have doubly-nested applications. That is if you have one Application.cfc which extends an Application.cfc which extends a root Application.cfc. If you try that, you get a bizarre custom-tag-path caching problem. I'm going to try and figure out how to fix that bug; but for now, this only works with a single level of extension.
